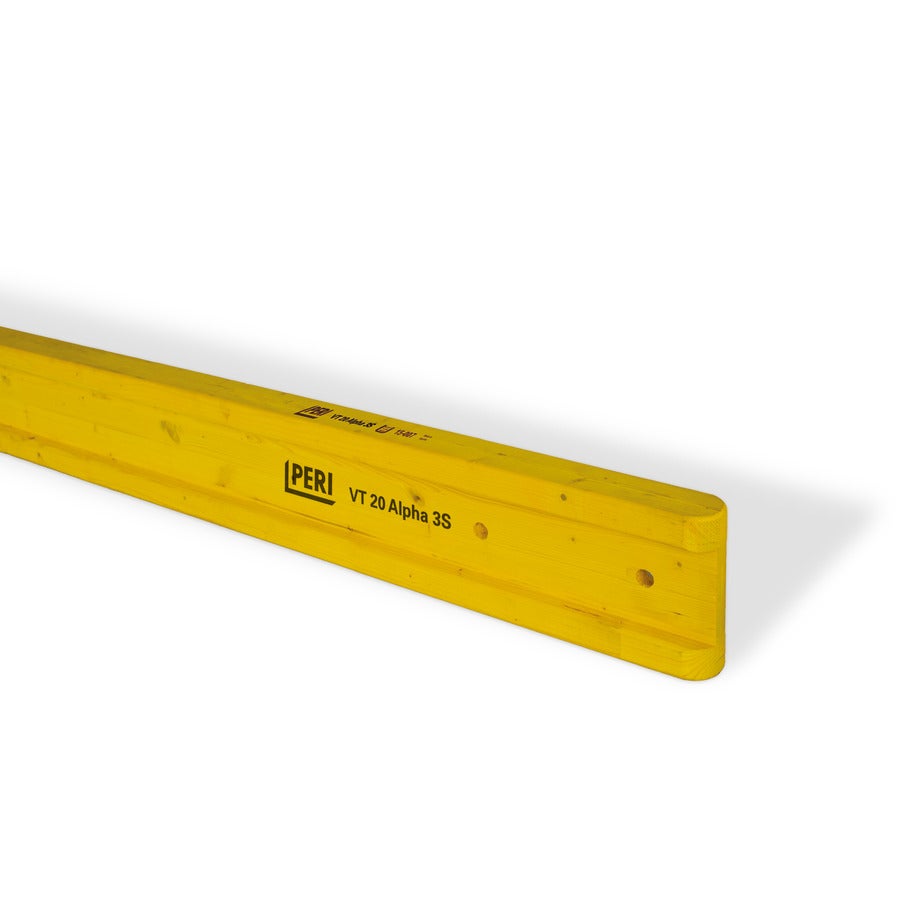

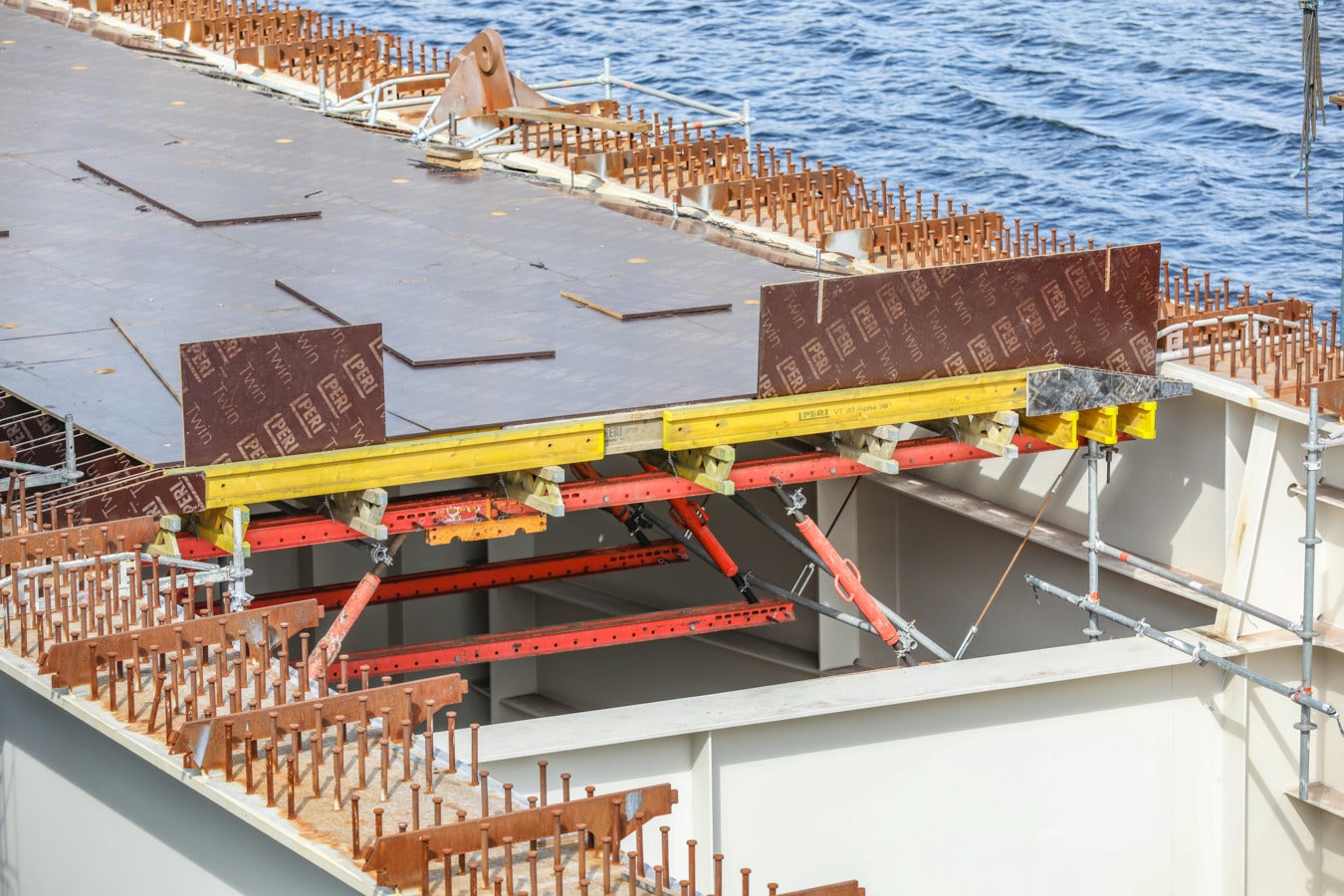

VT 20 Alpha 3S in action
-
![Low environmental impact compared to metal equivalents & PEFC raw material certified.]( "Low Environmental Impact")
Low Environmental ImpactLow environmental impact compared to metal equivalents & PEFC raw material certified.
-
![]()
Wide Range of ApplicationsSuitable for a wide range of applications and provides a mid-range option delivering an excellence balance of cost, quality and benefits.
Product Data Sheet
Dimensions
Height: 4 cm,
Widths: 20 cm,
Length: 2,45 m | 2,65 m | 2,90 m | 3,30 | 3,60 m | 3,90 m
Fulfilled standard
EN 13377
Weight
4.5 kg/m
Load
Permissible shear force: 11,0 kN,
Permissible bending moment: 5,0 kNm,
Allowed bearing strength: 22 kN
Interested in using the VT20 Alpha 3S Girder for your project?
Call us on 01 588 1374 to discuss your requirements further.
