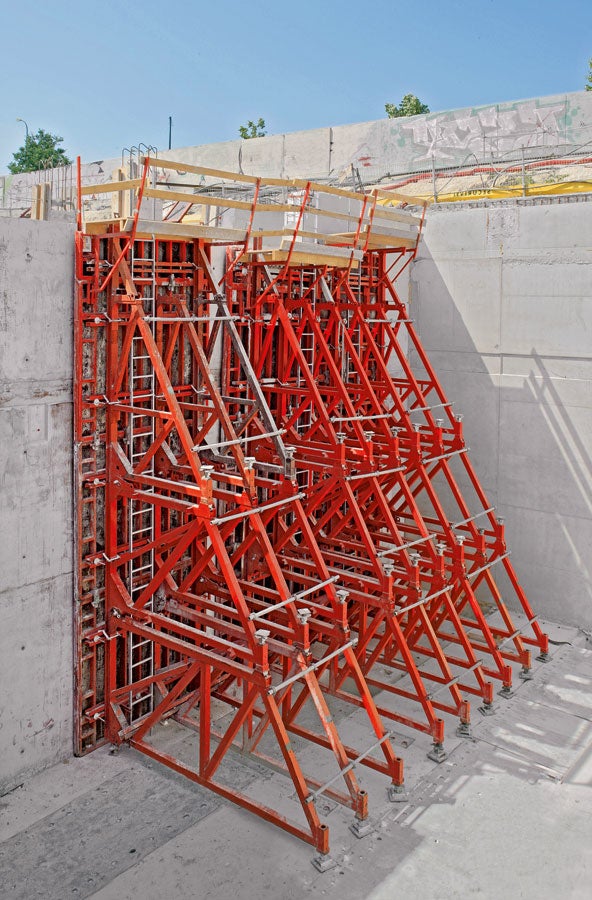

SB Brace Frame in action
-

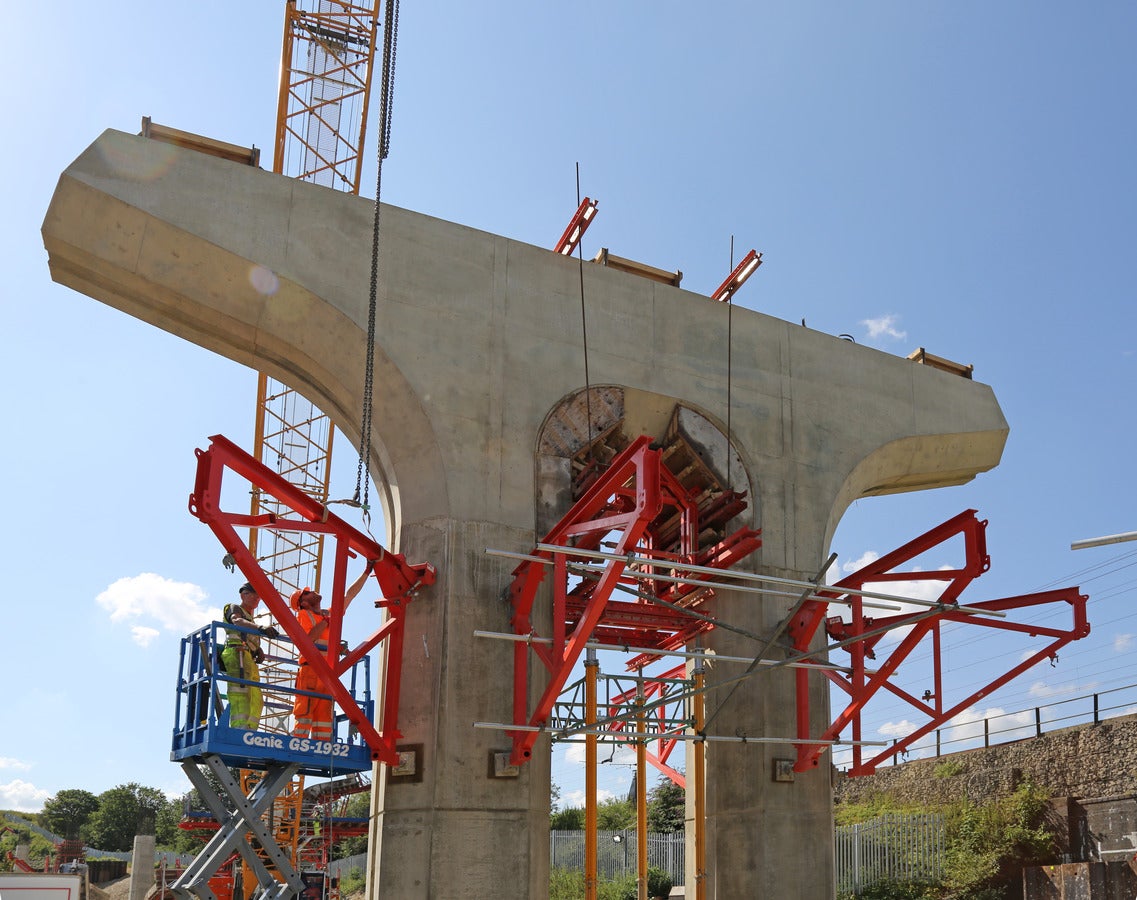

![Very versatile use with all PERI wall formwork as well as horizontal heavy-duty brackets.]( "Luton DART Rail Link")
Very versatile usewith all PERI wall formwork as well as horizontal heavy-duty brackets.

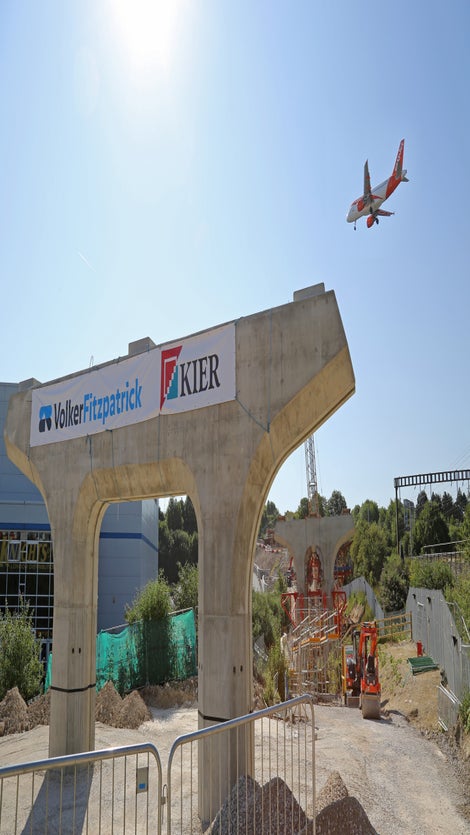

Project: Luton DART Rail Link
-
![as all required connection parts are already mounted on the Brace Frame.]( "Quickly connected without additional components")

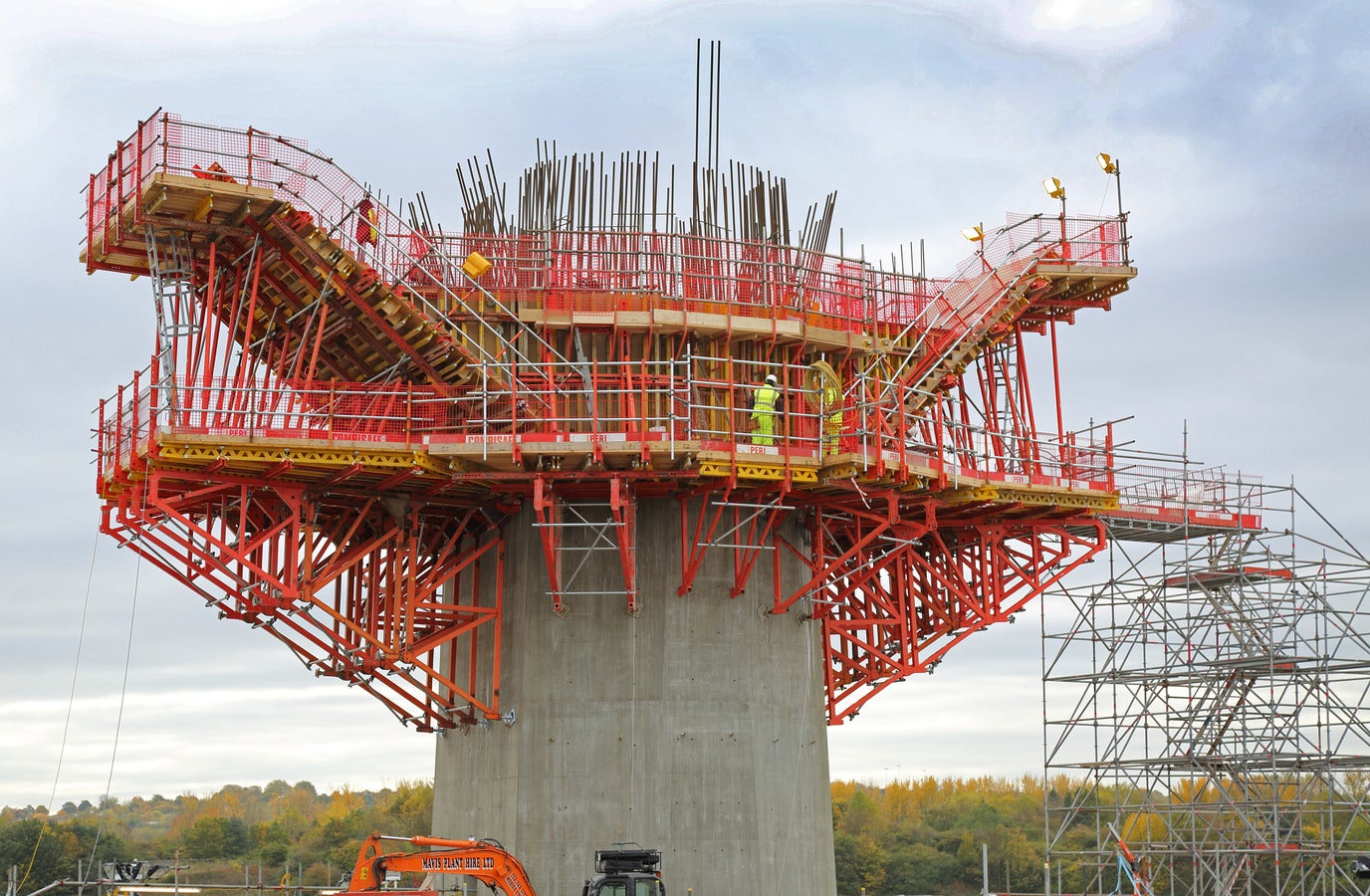

Quickly connected without additional componentsas all required connection parts are already mounted on the Brace Frame.

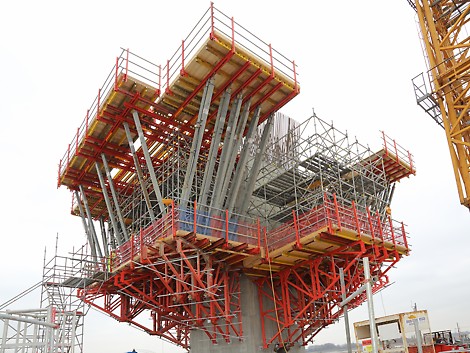

Project: Mersey Gateway
-
![Easy to transport through matching the individual component geometries to suit truck and container dimensions.]( "Regent Street Flyover")
Easy to transportthrough matching the individual component geometries to suit truck and container dimensions.

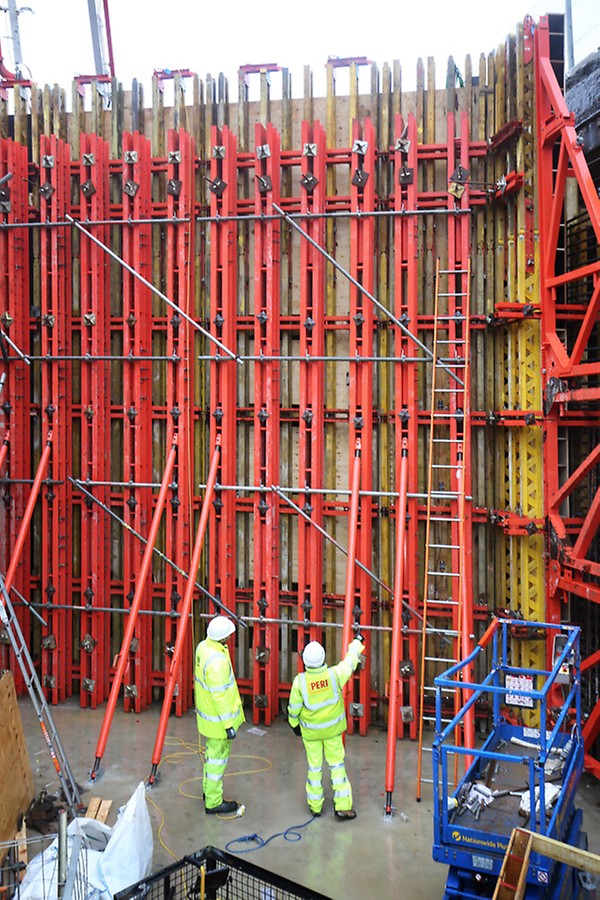

Project: Regent Street Flyover
Product Data Sheet
System type
Support Frame
Dimensions
Concreting height: 3.00 m to 8.75 m
Fresh concrete pressure
Can be used up to 60 kN/m²
Load
Tensile and compressive force: DW 15 anchor system: 180 kN, DW 20 anchor system: 300 kN, DW 26 anchor system: 500 kN
Other
With the PERI V-tie holder and the advance coupler, the tie rod can be installed precisely at an angle of 45°. This means safe load transfer and thus maximum stability for the support frame and formwork.
Additional information
