MULTIPROP in action
-
Practical wedge connection
Multifunctional MRK Frame without any time-consuming bolted connections.
-
High load-bearing capacity
Fewer individual props per m² through permissible leg loads of up to 100 kN (according to type test).
Product Data Sheet
Product Data Sheet
Dimensions
Length: 0.80 - 1.20 m (MP 120) | 1.45-2.50m (MP 250) | 1.95 - 3.50 m (MP 350) | 2.60 – 4.80 m (MP 480) | 4.30 - 6.25 m (MP 625)
Anti-corrosion and surface coating
Powder coated outer tube
Weight
10.10kg (MP 120) | 15.40kg (MP250) | 19.40kg (MP350) | 24.80kg (MP480) | 34.60 kg (MP625)
Load
Maximum load capacity: 102 kN (MP 120) | 99.3 kN (MP 250) | 96 kN (MP 350) | 94 kN (MP 480) | 57.9 kN (MP 625)
Other

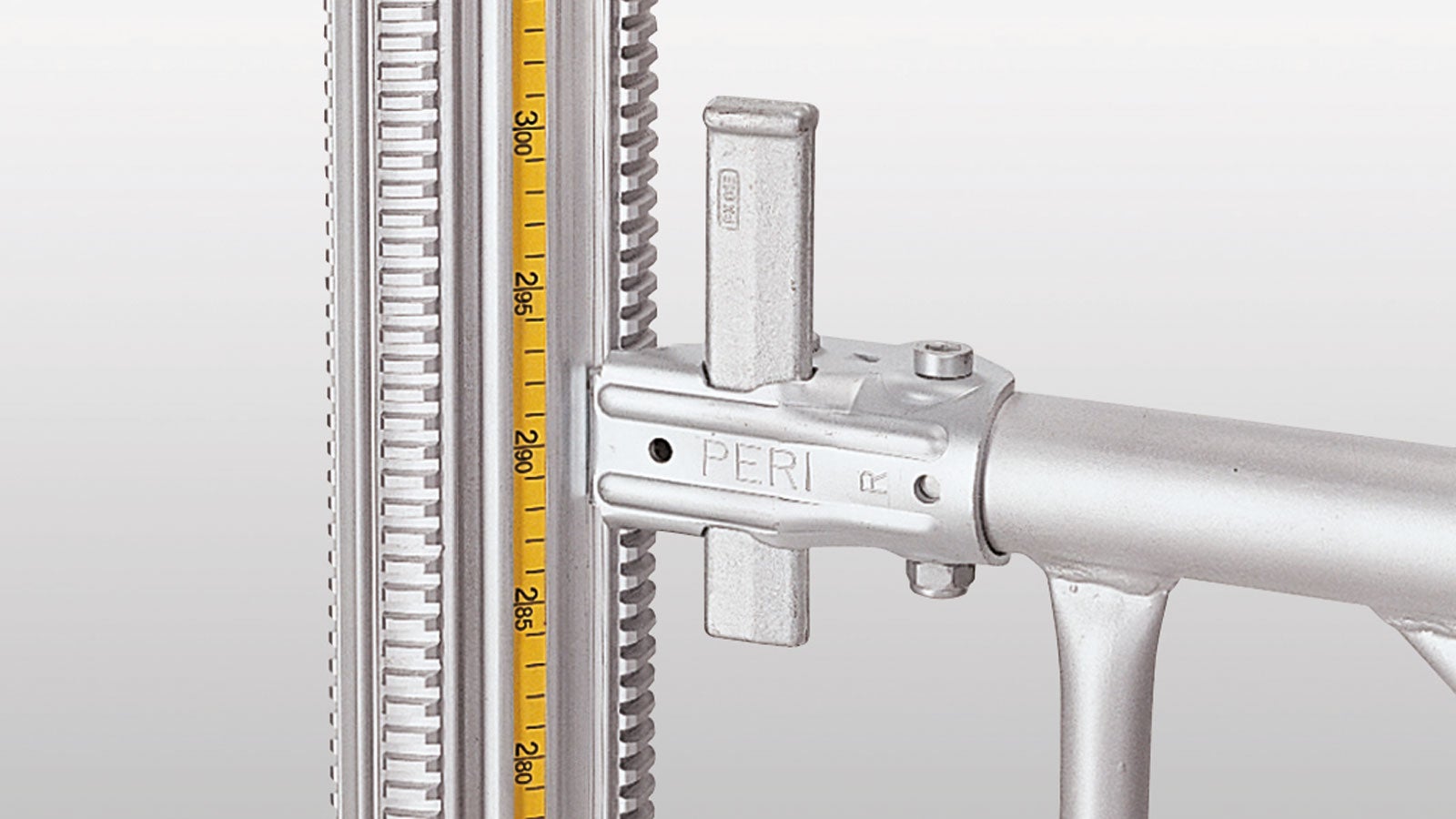

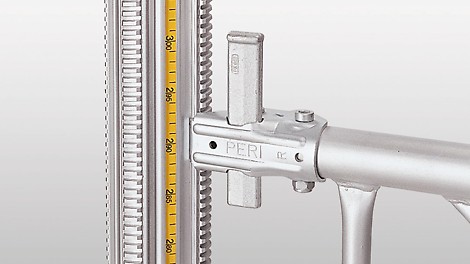

Integrated tape measure; Continuous, self-cleaning, four-start thread; Nut with four stable cams
